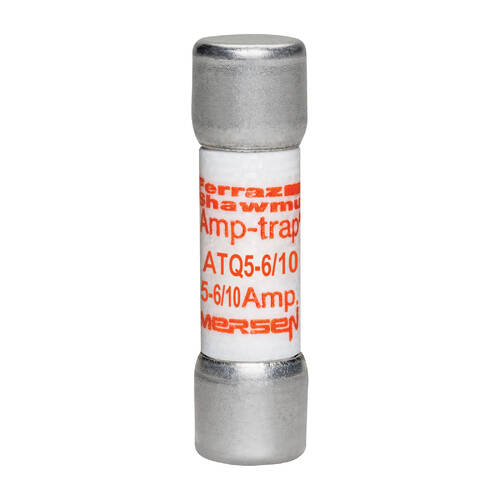

Mersen ATQ5-6/10 Fuse ATQ - Midget - Time-Delay 500VAC 5.6A Ferrule
$25.69
Mersen #: ATQ5-6/10
SKU: MERSATQ5-6/10
UPC: 782001904272
SKU: MERSATQ5-6/10
UPC: 782001904272
| Body Material: | GMG |
| Connection Material: | Tin-Plated Copper |
| AC Voltage Rating: | 500 V |
| Class: | Midget |
| Connection: | Ferrule |
| Interrupt Rating: | 10 kA |
| Mounting: | Clip |
| Type: | Midget Fuses |
| Size: | 1.5 x 0.41 in |
| Application: | Supplemental protection of lighting, solenoid, motor and transformer circuits |
| Special Features: | Numerous ratings for a wide variety of applications up to 500VAC Time-delay (12 seconds at 200 percent rating) for circuits with high inrush current Can be used with UltraSafe Fuse holders 1 1/2" x 13/32" (10 mm x 38 mm) dimensions |
| Standard: | UL listed to standard 248-14 File E33925 CSA Certified to Standard C22.2 No. 248.14 |
| Voltage Rating: | 500 VAC |
| Amperage Rating: | 5.6 A |
