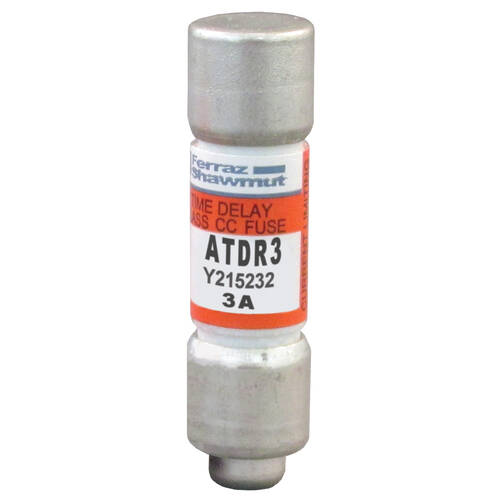

Mersen ATDR3 Fuse ATDR - Class CC - Time-Delay 600VAC 300VDC 3A Ferrule
$20.51
Mersen #: ATDR3
SKU: MERSATDR3
UPC: 782001900960
SKU: MERSATDR3
UPC: 782001900960
| AC Voltage Rating: | 600 V |
| Body Material: | GMG |
| Connection Material: | Tin-Plated Copper |
| Voltage Rating: | 600 VAC |
| Interrupt Rating: | 200 kA |
| Connection: | Ferrule |
| Mounting: | Clip |
| Amperage Rating: | 3 A |
| Application: | Small motors Contactors Lighting, heating & general loads Branch circuit protection |
| Class: | Class CC |
| Size: | 1.5 x 0.41 in |
| Special Features: | Time-delay for motor starting inrush currents without nuisance opening Highly current-limiting for low peak let-thru current Improved cycling ability for frequent motor starts/stops without nuisance fuse opening Rejection-style design prevents replacement |
| Standard: | UL listed to standard 248-4 File E2137 CSA certified to standard C22.2 No. 248.4 DC listed to UL standard 248 |
| Type: | Class CC |
