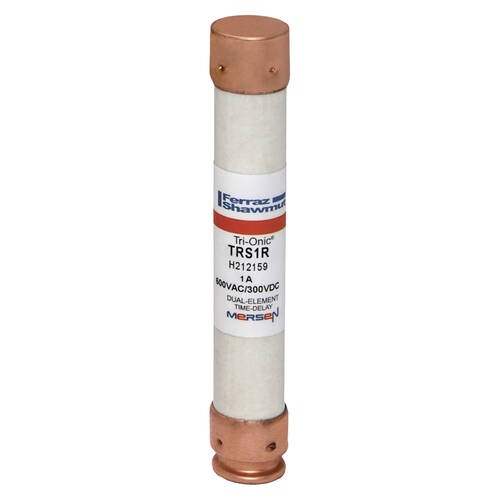

Mersen TRS1R Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 1A Ferrule
$19.28
Mersen #: TRS1R
SKU: MERSTRS1R
UPC: 782001748586
SKU: MERSTRS1R
UPC: 782001748586
| AC Voltage Rating: | 600 V |
| Body Material: | PolyTube |
| Connection Material: | Copper |
| Voltage Rating: | 600 VAC |
| Interrupt Rating: | 200 kA |
| Class: | Class RK5 |
| Connection: | Ferrule |
| Mounting: | Clip |
| Size: | 5 x 0.81 in |
| Type: | Class RK5 |
| Amperage Rating: | 1 A |
| Standard: | UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 no. 248.12 DC listed to UL standard 248 TRS only |
| Application: | Motor circuits Mains Feeders Branch circuits Transformers Service entrance equipment General-purpose equipment |
| Special Features: | Time-delay Current-limiting AC & DC rated Optional solid state SmartSpot blown fuse indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design pre |
