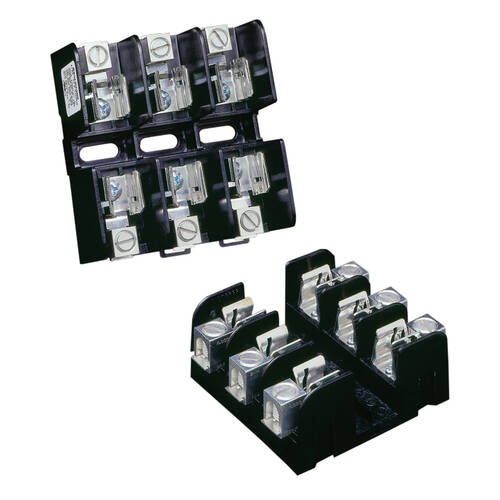

Mersen U70508 Fuse Block 750VAC 750VDC 50A 3-Pole Box
$59.62
Mersen #: U70508
SKU: MERSU70508
UPC: 782001323608
SKU: MERSU70508
UPC: 782001323608
| Maximum Operating Temperature: | 80 C |
| AC Voltage Rating: | 750 V |
| DC Voltage Rating: | 750 V |
| Number Of Poles: | 3-pole |
| Phase: | 3 |
| Material: | Thermoplastic |
| Type: | Semiconductor & Special Purpose Fuse Bases & Accessories |
| Amperage Rating: | 50 A |
| Application: | All circuits up to 750 volts using semiconductor fuses for protection of small inverters, UPS systems, motor drives, etc. |
| Class: | IEC Cylindrical 14x51mm |
| Connection: | Box |
| Mounting: | Screw Mount or DIN Rail |
| Special Features: | Thermoplastic bases DIN-rail (U710) or Screw Mount Adder block design |
| Standard: | UL Recognized component guide IZLT2, File E52283 CSA Certified class 6225, File 32169 |
| Voltage Rating: | 750 VAC |
| Size: | 3 x 3 x 1.37 in |
