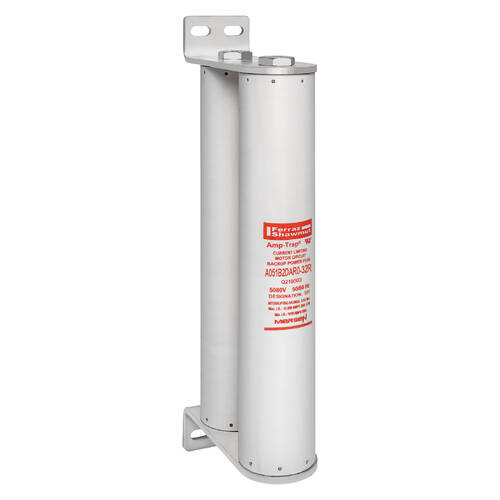

Mersen A051B2DAR0-32R R-Rated MV Fuse 5080VAC 32R Mounting: Bolted Style: DAR0 Visual Indicator
$4,852.74
Mersen #: A051B2DAR0-32R
SKU: MERSA051B2DAR0-32R
UPC: 782001200015
SKU: MERSA051B2DAR0-32R
UPC: 782001200015
| Body Material: | GMG |
| AC Voltage Rating: | 5080 V |
| Connection Material: | Silver-Plated Copper |
| Family Code: | 142 |
| Family Description: | Med Voltage R Rated |
| Type: | Back-Up R-Rated Bolt-On Fuses for Motor Protection |
| Amperage Rating: | 32 R |
| Application: | Short circuit protection of medium voltage motors and motor controllers |
| Connection: | Bolted |
| Interrupt Rating: | 65 kA |
| Material: | bolt-on |
| Mounting: | Bolted |
| Response Time: | R-Rated |
| Size: | 19.25 x 3 x 7.63 in |
| Standard: | UL Recognized File E93367 |
| Type Of Indicators: | Visual Indicator |
| Voltage Rating: | 5080 VAC |
| Special Features: | The Amp-Trap Bolt-in series are UL Recognized Bolt-in mounting for direct connection to bus or terminals Current-limiting for superior equipment protection Metal embossed catalog number and manufacturing date for lasting identification Blown-fuse indicato |
