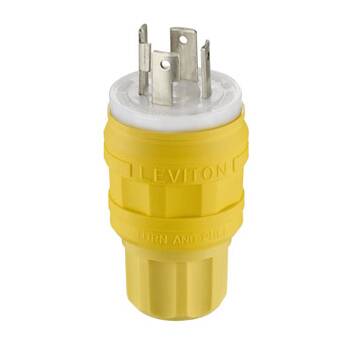

Leviton 28W74 YL WG PLG LCK 3PO4WI L14-30P30A125/250V
$85.16
Leviton #: 28W74
SKU: LEVI28W74
UPC: 078477969014
SKU: LEVI28W74
UPC: 078477969014
| Color: | Yellow |
| Size: | 2.28 Diameter X 3.61 L IN |
| Number of Poles: | 3 |
| Phase: | 3 |
| Amperage Rating: | 30 AMP |
| Number of Wires: | 4 |
| Mounting: | Cable |
| Application: | Industrial |
| Environmental Conditions: | Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C) |
| Standard: | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498) |
| Connection: | Screw Terminal |
| Material: | TPV |
| Type: | Watertight Plug;Locking |
| Cord Type: | SO;ST;STO;SOO |
| Wire Size: | 12-8 |
| Voltage Rating: | 125;250 |
| NEMA Rating: | L14-30P |
