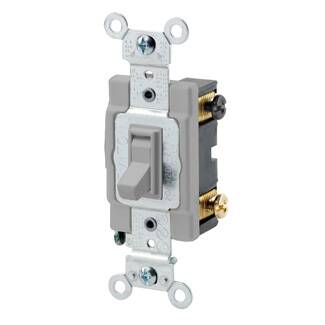

Leviton 54524-2GY CP GY SW TGL 4W 20A120/277VAC.
$28.53
Leviton #: 54524-2GY
SKU: LEVI54524-2GY
UPC: 078477125410
SKU: LEVI54524-2GY
UPC: 078477125410
| Actuator: | Toggle |
| Operating Temperature: | -40 to +120 DEG C |
| Voltage Rating: | 120/277 VAC |
| Color: | Gray |
| Size: | 46 H x 1.31 W x 1.52 D IN |
| Type: | Toggle Switch |
| Amperage Rating: | 20 AMP |
| Application: | Commercial |
| Connection: | Side Wired |
| Environmental Conditions: | Flammability (Rated V-2 per UL94) |
| Standard: | NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20) |
| Mounting: | Box |
| Number Of Poles: | 4-way |
