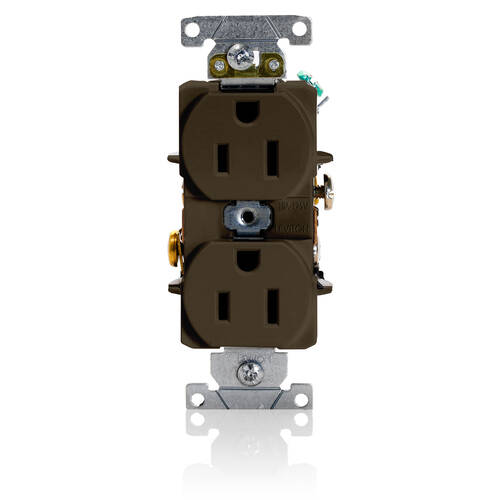

Leviton 5252 SM DUPLEX REC - BROWN
$7.21
Leviton #: 5252
SKU: LEVI5252
UPC: 078477819548
SKU: LEVI5252
UPC: 078477819548
| Color: | Brown |
| Size: | 46 H x 1.55 W x 1.12 D IN |
| Amperage Rating: | 15 AMP |
| Voltage Rating: | 125 |
| Number of Wires: | 3 |
| Phase: | 1 |
| Number of Poles: | 2 |
| Application: | Commercial |
| Connection: | Back and Side Wired |
| Dielectric Strength: | 2000 (Min.) |
| Environmental Conditions: | Flammability (Rated V-2 per UL94) |
| Material: | Nylon |
| Type: | Straight Blade;Duplex Outlet |
| Wire Size: | 14-10 |
| Mounting: | Wall Box |
| NEMA Rating: | 5-15R |
| Standard: | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
