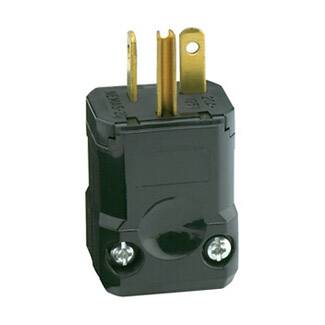

Leviton 5356-VB 520P ANGLED PYTHON PLUG BLK
$17.84
Leviton #: 5356-VB
SKU: LEVI5356-VB
UPC: 078477055076
SKU: LEVI5356-VB
UPC: 078477055076
| Color: | Black |
| Size: | 1.81 H IN |
| Voltage Rating: | 125 |
| Amperage Rating: | 20 AMP |
| Number of Wires: | 3 |
| Number of Poles: | 2 |
| Mounting: | Cable |
| Application: | Industrial |
| Environmental Conditions: | Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C) |
| Type: | Straight Blade Plug |
| Material: | Super Tough Nylon (Body) |
| Standard: | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399) |
| NEMA Rating: | 5-20P |
| Wire Size: | 18-10 AWG (Terminal Accommodation);.250-.655 IN (Cord Grip Range) |
