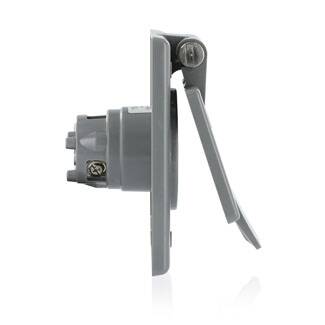

Leviton 5278-CWP 5-15P INLET W COVER FOR FORKED TERM
$64.55
Leviton #: 5278-CWP
SKU: LEVI5278-CWP
UPC: 078477018712
SKU: LEVI5278-CWP
UPC: 078477018712
| Color: | Gray |
| Size: | 4.56 H x 2.84 W x 2.82 D IN |
| Amperage Rating: | 15 AMP |
| Voltage Rating: | 125 |
| Number of Wires: | 3 |
| Number of Poles: | 2 |
| Dielectric Strength: | 2000 (Min.) |
| Material: | Nylon |
| Application: | Industrial |
| Environmental Conditions: | Flammability (Rated V-2 per UL94, Rated V-0 per UL94) |
| Standard: | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-16347);UL Listed 498 (File E13393) |
| Type: | Flanged Inlet |
| Wire Size: | 18-10 |
| Mounting: | Panel;FD Box;FS Box |
| NEMA Rating: | 5-15P |
| Temperature Rating: | -40 to +60 DEG C |
| Connection: | Standard Wire Well |
