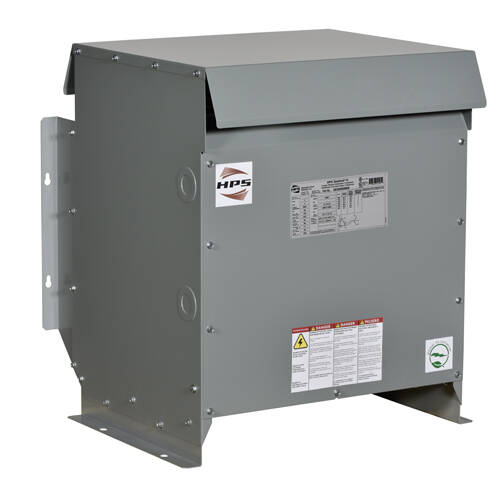

Hammond Power Solutions G3L0037BE D16/NRC19 1PH 37.5kVA 208 120/240V AL
$2,863.34
Hammond Power Solutions #: G3L0037BE
SKU: HAMMG3L0037BE
UPC: 803423140496
SKU: HAMMG3L0037BE
UPC: 803423140496
| Frequency Rating: | 60 Hz |
| Cooling: | Convection cooled |
| Mounting: | Floor or Wall mount |
| Number Of Taps: | ST-20 compliant |
| Standard: | CSA, UL |
| Temperature Rating: | Typical 30 Average/ 40 Maximum Deg C |
| Enclosure: | NH6-N3R - Indoor or Outdoor |
| Primary Voltage: | 208 V |
| Secondary Voltage: | 120/240 V |
| Application: | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Special Features: | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Length: | 23.8 in |
| KVA Rating: | 37.5 kVA |
| Type: | Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Single Phase |
| Height: | 26.7 in |
