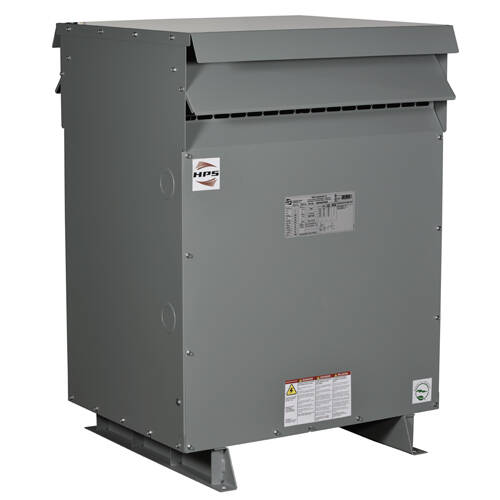

Hammond Power Solutions K3A0225KK4S D16/NRC19 SNK4 225kVA480D-480Y/277VAL
$15,146.67
Hammond Power Solutions #: K3A0225KK4S
SKU: HAMMK3A0225KK4S
UPC: 803423128951
SKU: HAMMK3A0225KK4S
UPC: 803423128951
| Frequency Rating: | 60 Hz |
| Cooling: | Convection cooled |
| Number Of Phases: | 3 |
| Number Of Taps: | ST-20 compliant |
| Standard: | CSA, UL |
| Temperature Rating: | Typical 30 Average/ 40 Maximum Deg C |
| Mounting: | Floor mount |
| Length: | 34 in |
| KVA Rating: | 225 kVA |
| Secondary Voltage: | 480Y/277 V |
| Special Features: | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Primary Voltage: | 480D V |
| Enclosure: | DH5-N3R - Indoor or Outdoor |
| Height: | 52 in |
| Application: | Addresses the overheating problems due to harmonics associated with non-linear loads where drives, personal computers, telecommunications equipment, broadcasting equipment and other similar power electronics are found in high concentrations. |
