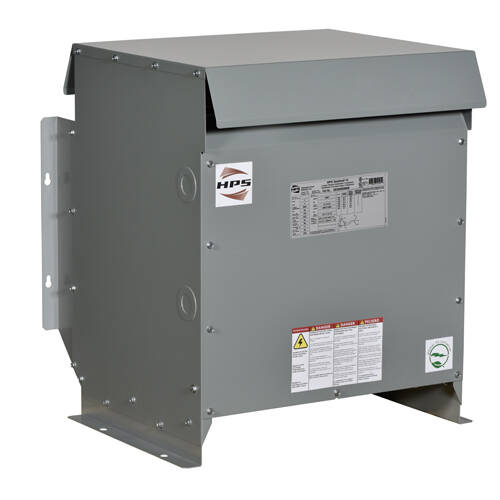

Hammond Power Solutions G3B0015PD0C D16/NRC19 3PH 15kVA 600Y-240D CU 60Hz
$3,345.52
Hammond Power Solutions #: G3B0015PD0C
SKU: HAMMG3B0015PD0C
UPC: 803423128395
SKU: HAMMG3B0015PD0C
UPC: 803423128395
| Frequency Rating: | 60 Hz |
| Cooling: | Convection cooled |
| Number Of Phases: | 3 |
| Number Of Taps: | ST-20 compliant |
| Standard: | CSA, UL |
| Temperature Rating: | Typical 30 Average/ 40 Maximum Deg C |
| KVA Rating: | 15 kVA |
| Application: | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Enclosure: | DH1-N3R - Indoor or Outdoor |
| Height: | 22 in |
| Length: | 20.1 in |
| Mounting: | Floor or Wall/Ceiling Mount |
| Special Features: | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Primary Voltage: | 600Y V |
| Secondary Voltage: | 240D V |
