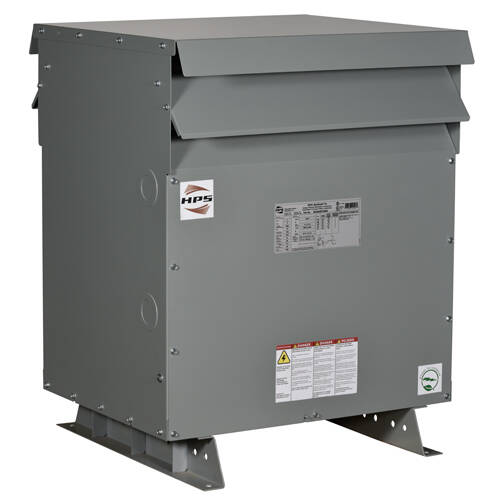

Hammond Power Solutions G3A0075KB0C D16/NRC19 3PH 75kVA 480D-208Y/120V CU
$6,249.00
Hammond Power Solutions #: G3A0075KB0C
SKU: HAMMG3A0075KB0C
UPC: 803423123901
SKU: HAMMG3A0075KB0C
UPC: 803423123901
| Frequency Rating: | 60 Hz |
| Cooling: | Convection cooled |
| Number Of Phases: | 3 |
| Number Of Taps: | ST-20 compliant |
| Standard: | CSA, UL |
| Temperature Rating: | Typical 30 Average/ 40 Maximum Deg C |
| KVA Rating: | 75 kVA |
| Application: | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Special Features: | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Secondary Voltage: | 208Y/120 V |
| Primary Voltage: | 480D V |
| Enclosure: | DH3-N3R - Indoor or Outdoor |
| Height: | 36 in |
| Length: | 27 in |
| Mounting: | Floor (Opt. Wall/Ceiling Mount) |
