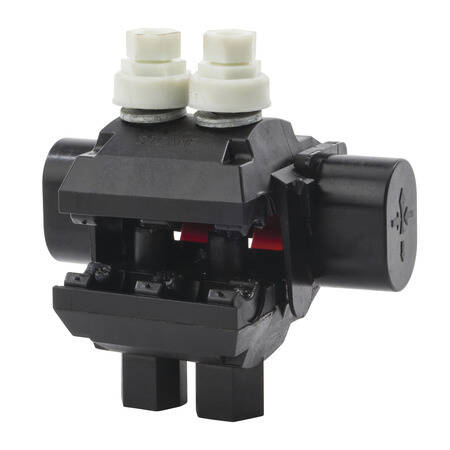

NSi Industries IPCS5035 Insulation Piercing Connector 500-350 MC
$151.90
NSi Industries #: IPCS5035
SKU: NSIIIPCS5035
UPC: 662381082695
SKU: NSIIIPCS5035
UPC: 662381082695
| Warranty: | 1 Year |
| Environmental Conditions: | 90 C |
| Temperature Rating: | 90 C |
| Voltage Rating: | 600 V |
| Application: | NSI |
| Color: | Black |
| Finish: | Thermal Plastic |
| Material: | Fiber Reinforced Thermal Plastic |
| Mounting: | Clamp |
| Special Features: | No need to strip wire - No tape or cover needed - Exclusive turbo spacer keeps tap side open while main conductor is being tightened |
| Standard: | UL486B Listed |
| Type: | Insulation Piercing Connectors |
| Amperage Rating: | 570 (CU Amps) - 445 (AL Amps) |
| Conductor Size: | 500 MCM-4/0 AWG (Main) |
| Size: | Lequals3.90 - Wequals3.00 - Hequals4.50 |
| Tap Size: | 350 MCM-1/0 AWG |
