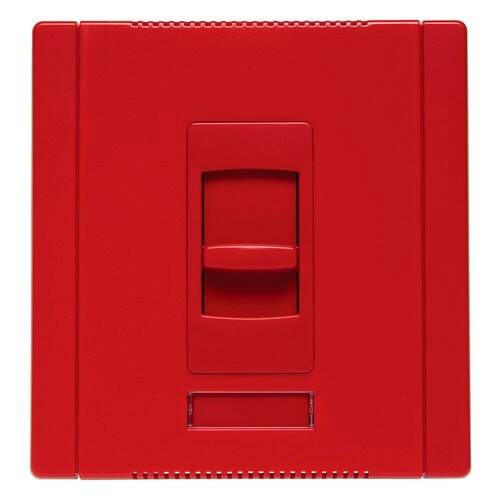

Pass & Seymour CD1600RED SLIDE DIM SP 1600W 120V RED
$152.78
Pass & Seymour #: CD1600RED
SKU: LEGRCD1600RED
UPC: 785007007640
SKU: LEGRCD1600RED
UPC: 785007007640
| Mounting: | Wall |
| Actuator: | Slide |
| Material: | Thermoplastic |
| Operating Temperature: | Ambient: Between 0 to 40C Deg |
| Size: | 4.65 L x 1.44 W x 4.87 H In |
| Application: | Commercial |
| Number of Poles: | 1 |
| Voltage Rating: | 120 |
| Environmental Conditions: | Non-Condensing Humidity: Less than 95 |
| Frequency Rating, Minimum: | 60.000000000000000 Hz |
| Load: | Up to rating of device (including de-rating) |
| Operating Cycles: | 100 cycles @ 150% of rated load plus 10K cycles @ rated load |
| Standard: | cULus, California Title 24 Compliant |
| Special Features: | Field configurable wall plate system. Labeling system. Adjustable top end output voltage. Shipped with protective film. Rugged construction. Superior ratings with a minimum of de-rating when ganged. Simple to plan the rough-in. Available in single pole sl |
| Type: | Titan Series Incandescent Dimmer, Slide-to-OFF, Wide |
| Wattage: | 1600 |
