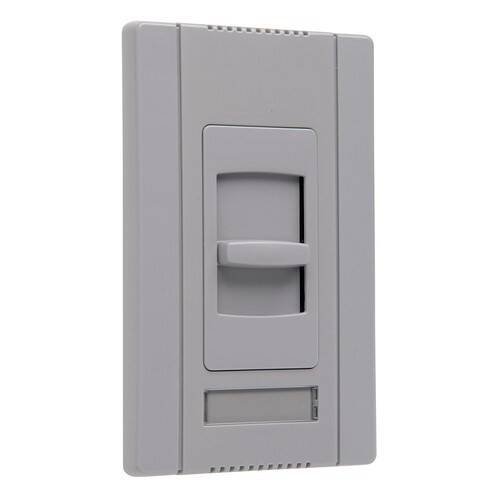

Pass & Seymour CD4FBGRY SLIDE EFL SP 4W 24 VDC GRY

$0.00
Pass & Seymour #: CD4FBGRY
SKU: LEGRCD4FBGRY
UPC: 785007303452
Mounting: Wall
Actuator: Slide
Material: Thermoplastic
Operating Temperature: Ambient: Between 0 to 40C Deg
Size: 2.85 L x 1.44 W x 4.87 H In
Application: Commercial
Number of Poles: 1
Voltage Rating: 24
Environmental Conditions: Non-Condensing Humidity: Less than 95
Frequency Rating, Minimum: 60.000000000000000 Hz
Load: Up to rating of device (including de-rating)
Operating Cycles: 100 cycles @ 150% of rated load plus 10K cycles @ rated load
Standard: cULus, California Title 24 Compliant
Special Features: For use with 0-10V, 4 wire, 120V and 277V fluorescent dimming ballasts. Requires PWP120277 Universal Voltage Power Pack. Field configurable wall plate system. Labeling system. Adjustable low end output voltage. Shipped with protective film. Rugged constru
Type: Titan Series Fluorescent 4 Wire Dimmer, Electronic, Slide-to-OFF, Narrow
