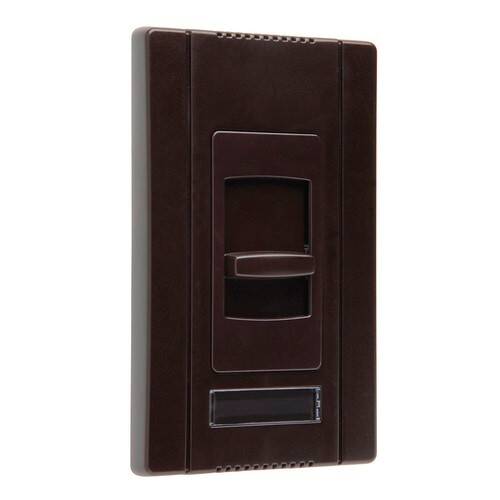

Pass & Seymour CD4FB SLIDE EFL SP 4WIRE 24 VDC BR
$0.00
Pass & Seymour #: CD4FB
SKU: LEGRCD4FB
UPC: 785007303438
SKU: LEGRCD4FB
UPC: 785007303438
| Mounting: | Wall |
| Actuator: | Slide |
| Material: | Thermoplastic |
| Operating Temperature: | Ambient: Between 0 to 40C Deg |
| Size: | 2.85 L x 1.44 W x 4.87 H In |
| Application: | Commercial |
| Number of Poles: | 1 |
| Voltage Rating: | 24 |
| Environmental Conditions: | Non-Condensing Humidity: Less than 95 |
| Frequency Rating, Minimum: | 60.000000000000000 Hz |
| Load: | Up to rating of device (including de-rating) |
| Operating Cycles: | 100 cycles @ 150% of rated load plus 10K cycles @ rated load |
| Standard: | cULus, California Title 24 Compliant |
| Special Features: | For use with 0-10V, 4 wire, 120V and 277V fluorescent dimming ballasts. Requires PWP120277 Universal Voltage Power Pack. Field configurable wall plate system. Labeling system. Adjustable low end output voltage. Shipped with protective film. Rugged constru |
| Type: | Titan Series Fluorescent 4 Wire Dimmer, Electronic, Slide-to-OFF, Narrow |
