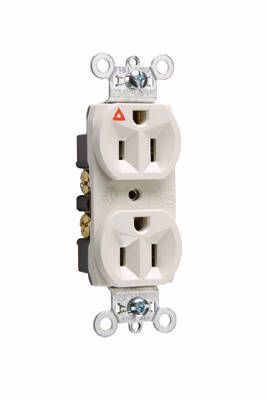

Pass & Seymour IG5262W RECEP DUP 15A COMMER ISOL GRD WH
$9.87
Pass & Seymour #: IG5262W
SKU: LEGRIG5262W
UPC: 785007045291
SKU: LEGRIG5262W
UPC: 785007045291
| Color: | White |
| Indoor/Outdoor: | Indoor |
| Number of Receptacles: | 2.0 |
| Voltage: | 125.0 V |
| Application Sector: | Commercial |
| Amperage: | 15.0 A |
| Country code for ECCN: | MX |
| Outlet Type: | Commercial, Indoor |
| Size: | 1.322 L x .922 W x 3.281 H In |
| Product Depth: | 0.922 in |
| Product Height: | 2.635 in |
| Product Width: | 1.322 in |
| Voltage Rating: | 125 |
| Number of Wires: | 3 |
| Application: | Commercial |
| Material: | Nylon |
| NEMA Rating: | 5-15R |
| Type: | Outlet |
| Mounting: | Wall |
| Number of Poles: | Double Pole |
| Wire Size: | 14 - 10 AWG |
| Connection: | Back and side wire |
| Dielectric Strength: | Withstands 2000V minimum |
| Environmental Conditions: | Flammability: UL94 V2 |
| Temperature Rating: | -40 - 60 C |
| Standard: | CULUS, FEDSPEC, UL498, CSA C22.2 No. 42 |
| Special Features: | IG symbol and Isolated Ground markings for easy identification and circuit delineation. Triple-wipe brass contacts ensure lasting, positive contact with plug blades. High-impact resistant nylon face resists impacts and scrapes. Corrosion-resistant plated |
