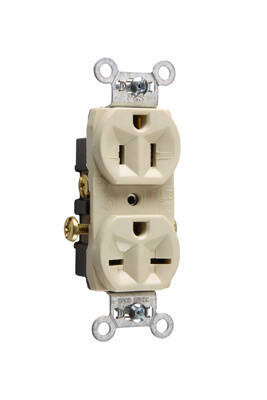

Pass & Seymour 5290I RECEPT COMBO 15A125/250V IV
$18.23
Pass & Seymour #: 5290I
SKU: LEGR5290I
UPC: 785007529012
SKU: LEGR5290I
UPC: 785007529012
| Color: | Ivory |
| Voltage: | 125.0 V |
| Application Sector: | Commercial |
| Amperage: | 15.0 A |
| Country code for ECCN: | MX |
| Product Height: | 2.635 in |
| Product Width: | 1.322 in |
| Size: | 1.322 L x .780 W x 3.281 H In |
| Product Depth: | 0.78 in |
| Number of Wires: | 3 |
| Application: | Commercial |
| Material: | Nylon |
| Amperage Rating: | 15 |
| Voltage Rating: | 125/250 |
| Mounting: | Wall |
| Number of Poles: | Double Pole |
| Wire Size: | 14 - 10 AWG |
| Dielectric Strength: | Withstands 2000V minimum |
| Environmental Conditions: | Flammability: UL94 V2 |
| Connection: | Side wire |
| Standard: | CULUS, FEDSPEC, UL498, CSA C22.2 No. 42 |
| Special Features: | Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting |
| Type: | Spec Grade Combination Receptacle, Hard Use |
| NEMA Rating: | 5-15R/6-15R |
