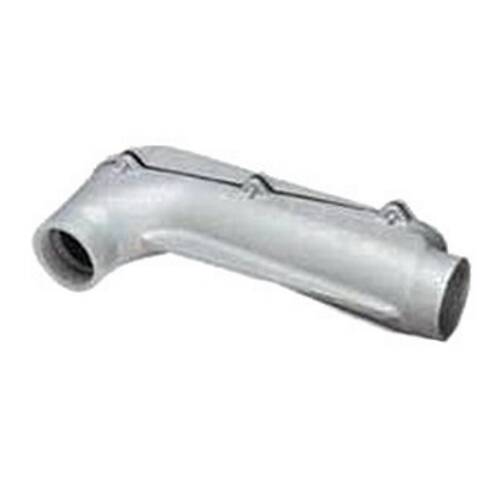

O-Z/Gedney LB6X-250M 2-1/2 IN LB MOGUL COND BDY
$514.55
O-Z/Gedney #: LB6X-250M
SKU: OZGELB6X-250M
UPC: 783126014327
SKU: OZGELB6X-250M
UPC: 783126014327
| Connection: | Tapered FNPT |
| Hub Size: | 2-1/2 |
| Material: | Malleable Iron |
| Height: | 8 in |
| Length: | 17.88 in |
| Width: | 5.88 in |
| Application: | For Rigid Conduit And IMC |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Raintight wh |
| Standard: | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Type: | Type LB Mogul Conduit Body |
| Finish: | Triple coat: Zinc Electroplated, Dichromate, Epoxy Powder Coat |
