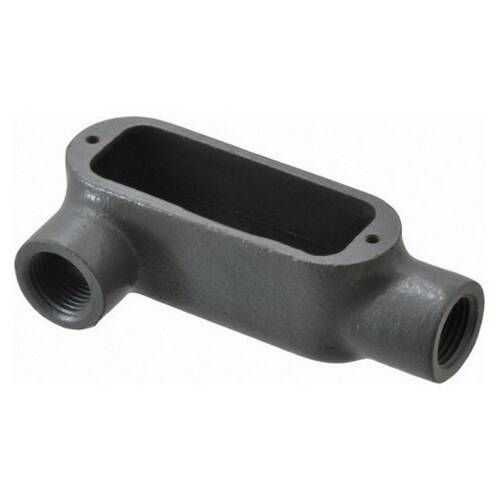

O-Z/Gedney LR37 1 IN FORM7 LR COND BODY
$29.46
O-Z/Gedney #: LR37
SKU: OZGELR37
UPC: 783126388022
SKU: OZGELR37
UPC: 783126388022
| Connection: | Tapered FNPT |
| Color: | Gray |
| Hub Size: | 1 |
| Length: | 6 in |
| Form: | 7 |
| Material: | Iron |
| Width: | 2-3/4 IN |
| Application: | For Rigid Conduit And IMC |
| Finish: | Zinc Electroplated With Aluminum Enamel |
| Height: | 1-7/8 IN |
| Type: | Type LR Conduit Body |
| Standard: | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No. 18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC section 501-4(B), NEMA: FB-1, FB-2.10 |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Complete int |
