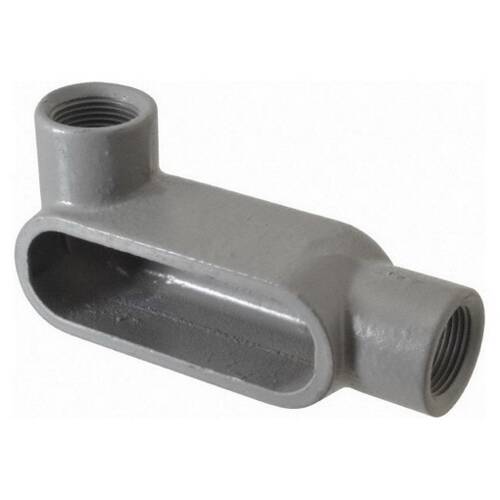

O-Z/Gedney LL47 1-1/4 IN FORM7 COND BODY
$17.71
O-Z/Gedney #: LL47
SKU: OZGELL47
UPC: 783126378610
SKU: OZGELL47
UPC: 783126378610
| Connection: | Tapered FNPT |
| Color: | Gray |
| Hub Size: | 1-1/4 |
| Form: | 7 |
| Material: | Iron |
| Length: | 6-1/2 IN |
| Application: | For Rigid Conduit And IMC |
| Finish: | Zinc Electroplated With Aluminum Enamel |
| Height: | 2-5/16 IN |
| Standard: | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Type: | Type LL Conduit Body |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Time-saving clip-on covers; Stainless ste |
| Width: | 3-3/16 IN |
