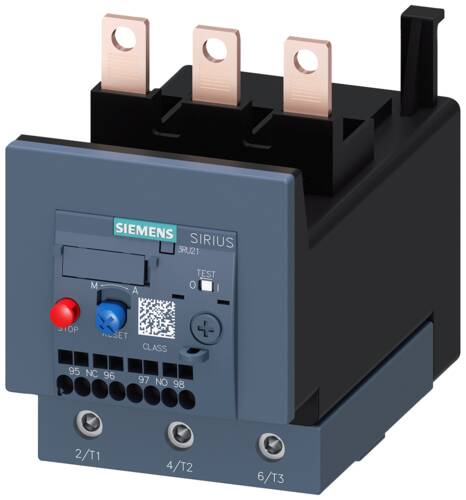

Siemens Industry 3RU21464MD0 THERM. OVERLOAD RELAY. 80...100 A
$483.92
Siemens Industry #: 3RU21464MD0
SKU: SIEM3RU21464MD0
UPC: 804766406461
SKU: SIEM3RU21464MD0
UPC: 804766406461
| Display version / for switching status: | Slideswitch |
| Number of NC contacts / for auxiliary contacts / Note: | forcontactordisconnection |
| Shock resistance / acc. to IEC 60068-2-27: | 8g/11ms |
| Product component / RESET button: | Yes |
| Number of NO contacts / for auxiliary contacts / Note: | formessage"Tripped" |
| Product component / STOP pushbutton: | Yes |
| Operating voltage / rated value: | 690 V |
| Relative humidity / during operation / minimum: | 0 % |
| Design of the thread / of the connection screw / for main contacts: | M8 |
| Design of screwdriver shaft: | Hexagonalsocket |
| Size of the screwdriver tip: | 4mmhexagonsocket |
| Tightening torque / for main contacts / with screw-type terminals / minimum: | 4.5 N.m |
| Tightening torque / for main contacts / with screw-type terminals / maximum: | 6 N.m |
| Tightening torque / for main contacts / for ring cable lug / maximum: | 6 N.m |
| Full-load current (FLA) / for three-phase AC motor / at 600 V / rated value: | 99 A |
| Trip Class: | CLASS10 |
| Height: | 105 mm |
| Depth: | 125 mm |
| Width: | 70 mm |
