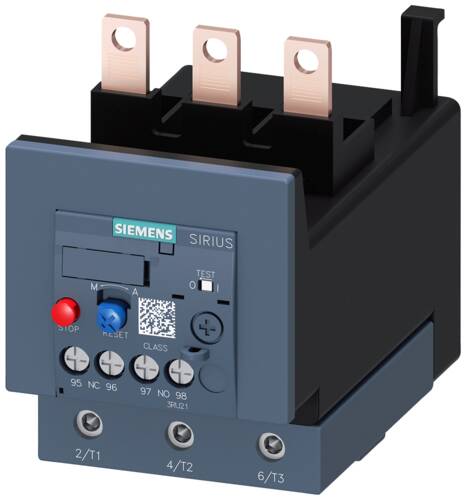

Siemens Industry 3RU21464JB0 THERM. OVERLOAD RELAY. 45...63 A
$277.38
Siemens Industry #: 3RU21464JB0
SKU: SIEM3RU21464JB0
UPC: 804766377860
SKU: SIEM3RU21464JB0
UPC: 804766377860
| Ambient temperature / during operation / maximum: | 70 C |
| Installation altitude / at height above sea level / maximum: | 2000 m |
| Ambient temperature / during storage / minimum: | -55 C |
| Ambient temperature / during transport / minimum: | -55 C |
| Number of poles / for main current circuit: | 3 |
| Ambient temperature / during operation / minimum: | -40 C |
| Relative humidity / during operation / maximum: | 90 % |
| Product function / removable terminal for auxiliary and control circuit: | No |
| Ambient temperature / during storage / maximum: | 80 C |
| Ambient temperature / during transport / maximum: | 80 C |
| Operating voltage / at AC-3 / Rated value / maximum: | 690 V |
| Insulation voltage / with degree of pollution 3 / rated value: | 1000 V |
| Surge voltage resistance / rated value: | 8 V |
| Operating current / at AC-3 / at 400 V / Rated value: | 63.00 A |
| AWG number / as coded connectable conductor cross section / for main contacts / minimum: | 10 |
| Trip Class: | CLASS10 |
| Height: | 105 mm |
| Depth: | 125 mm |
| Width: | 70 mm |
