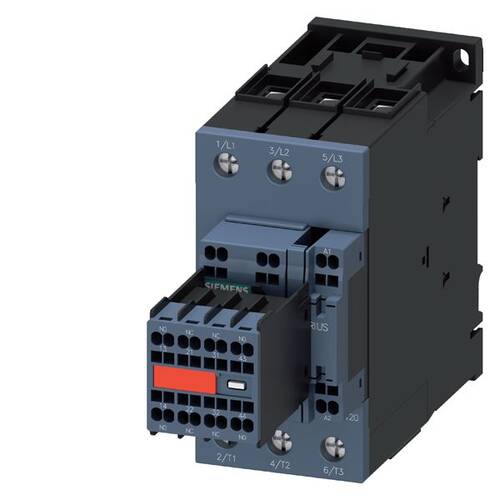

Siemens Industry 3RT20383AK643MA0 CONTACTOR S2 65A 120VAC SPRING 2NO/2NC

$616.36
View Full Details
Siemens Industry #: 3RT20383AK643MA0
SKU: SIEM3RT20383AK643MA0
UPC: 804766233548
Operating current / at DC-12 / at 220 V / rated value: 1 A
Contact rating / of auxiliary contacts / according to UL: A600/Q600
Operating current / at DC-12 / at 24 V / rated value: 10 A
Operating current / at DC-12 / at 125 V / rated value: 2 A
Operating current / at AC-15 / at 400 V / rated value: 3 A
Operating current / at DC-12 / at 60 V / rated value: 6 A
Operating current / at AC-12 / maximum: 10 A
Operating current / at DC-12 / at 440 V / rated value: 0.3 A
Operating current / at AC-15 / at 690 V / rated value: 1 A
Operating current / at DC-12 / at 110 V / rated value: 3 A
Operating current / at DC-12 / at 48 V / rated value: 6 A
Operating current / at AC-15 / at 230 V / rated value: 6 A
Yielded mechanical performance [hp] / for single-phase AC motor / at 230 V / rated value: 15 hp
Full-load current (FLA) / for three-phase AC motor / at 480 V / rated value: 65 A
Full-load current (FLA) / for three-phase AC motor / at 600 V / rated value: 62 A
