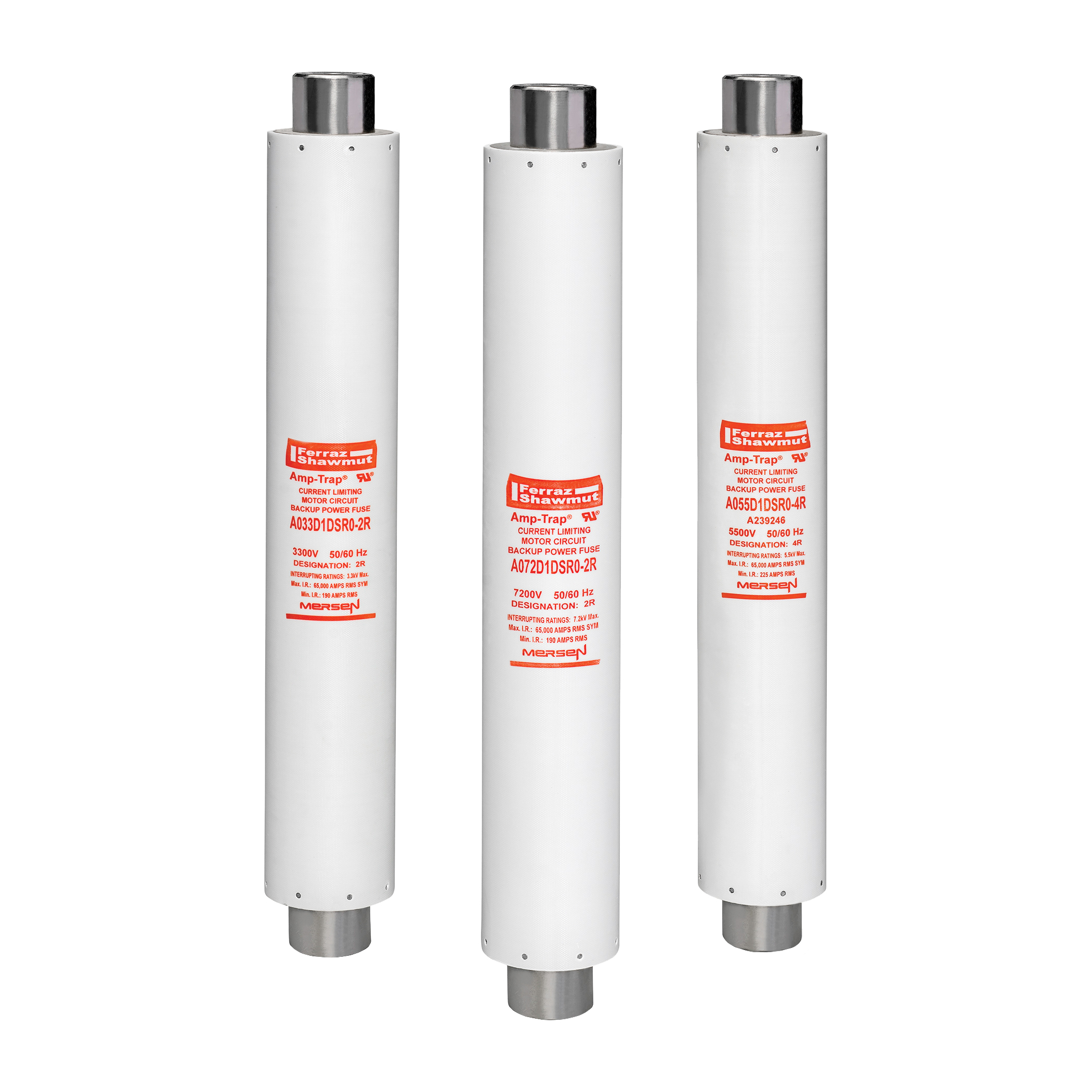

Mersen Back-Up R-Rated MV Fuse 3.3 kV DIN Mount Motor 2R Visual Indicator
Mersen #:A033D1DSR0-2R
SKU: MERSA033D1DSR0-2R
UPC: 782001325855
SKU: MERSA033D1DSR0-2R
UPC: 782001325855
Your Price: $1,408.44 / EA
Mersen Back-Up R-Rated MV Fuse 3.3 kV DIN Mount Motor 2R Visual Indicator
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product Back-Up R-Rated MV Fuse 3.3 kV DIN Mount
Specification Sheet
Detailed Description
Back-Up R-Rated Medium Voltage Fuse 3.3 kV DIN Mount Motor 2R Visual Indicator
| Body Material: | GMG |
| Family Code: | 142 |
| Family Description: | Med Voltage R Rated |
| Type: | Back-Up R-Rated DIN Style Fuses for Motor Protection |
| Connection Material: | Silver-Plated Brass |
| AC Voltage Rating: | 3300 V |
| Mounting: | Clip |
| Application: | Short circuit protection of medium voltage motors and motor controllers |
| Response Time: | R-Rated |
| Type Of Indicators: | Visual Indicator |
| Connection: | Clip |
| Interrupt Rating: | 100 kA |
| Material: | clip |
| Size: | 20 x 2.88 in |
| Special Features: | Clip mount DIN 45: R-Rated fuses with North American ANSI characteristics in a standard DIN 442mm size Current-limiting for superior equipment protection Blown fuse indicator provides positive identification of open fuse. 4.5lb tripping force - 1.0 |
| Standard: | UL recognized component File E93367 |
| Amperage Rating: | 2 R |
| Voltage Rating: | 3300 VAC |
