Your Price: $0.00

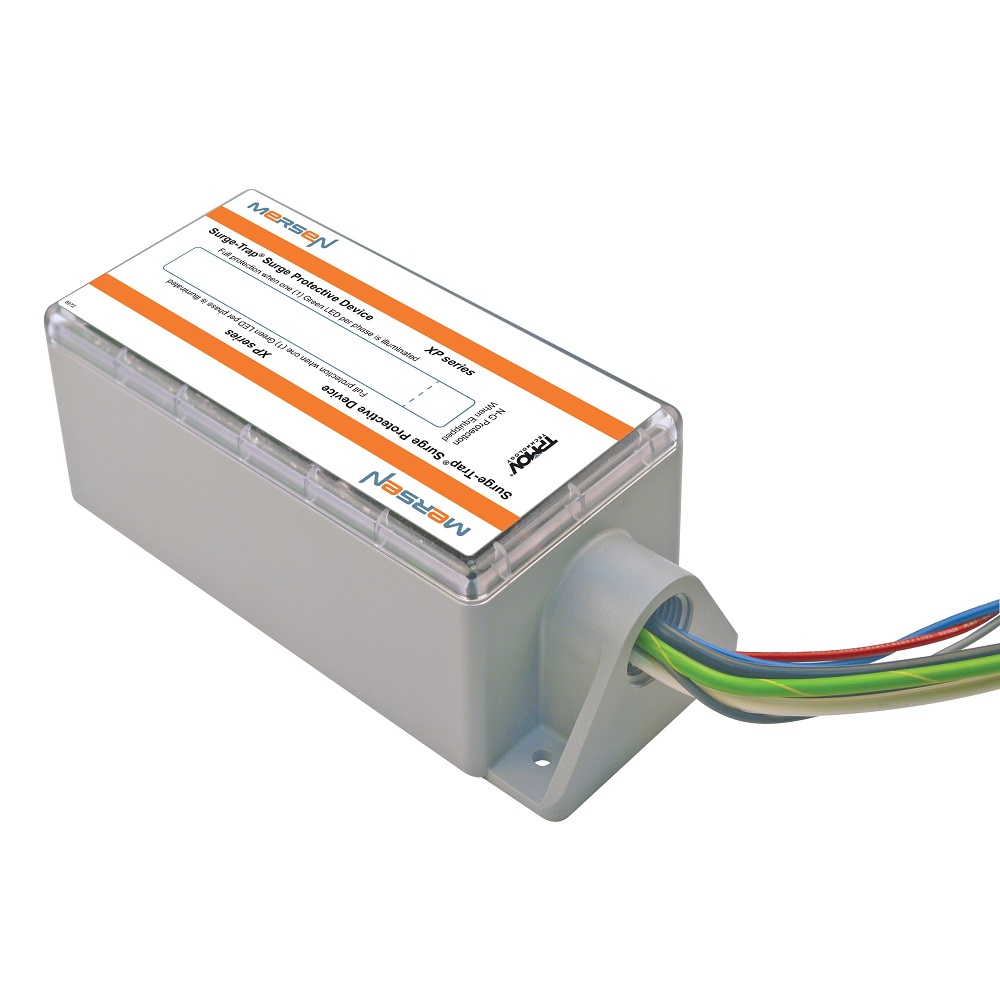

Mersen 240/120V SPLIT PHASE
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 240/120V SPLIT PHASE
Specification Sheet
Detailed Description
The Surge-Trap Type 1 XP Series offers advanced performance over other products. The XP meets requirements for UL1449 Third Edition and has been designed to be as compact as possible while offering advanced protection. The XP features TPMOV technology inside making it the safest product available. Installation can be done on the line or load side of a panel. The XP is the perfect fit from service entrance all the way down to an important machine specific control panel. 120/240 Volts split phase system type with remote indicator .
| Voltage Rating: | 240 Vac |
| Type: | Surge-Trap Type 1 & 2 |
| Type of Indicators: | LED |
| Application: | AC Distribution Power supplies Drive Protection Fire Alarms Control Panels Telecommunications Residential IT / Data centers |
| Short-Circuit Rating: | 100 kA |
| Standard: | UL 1449 Third Edition, (cUL Type 2 optional) UL File VZCA.E210793 RoHS Compliant IEC 61643 CE Burn-In tested prior to shipment UL 96A lighting protection master label |
| Special Features: | UL 1449 Third Edition Listed, Type 1 SPD (Sept. 2009) Can be installed line-side or load-side of main disconnect 20kA Nominal discharge current 200kA SCCRs (most models) UL 96A Lightning Protection Master Label compliant (@20kA, In) Pre-wired wi |
| Mounting: | Screw |
